Custom Freeride Wing Foil Boards Made in France
Compact and technical boards for intermediate to expert riders. Designed to please the eye through unique esthetic features, yet built using cutting edge composite technology for a fun experience even in light wind conditions.
Our shapes with on-demand rake, allow for immediate take-off and easy touch and go. Our new hull design will optimize your flight time during every session.
All Voga Marine wing foil boards are built in full carbon under vacuum with large deck and hull sandwich plates that are bound together inside thanks to a stiff structural beam allowing the rider to perfectly translate its movements to the foil rig. This configuration offers ultimate control as if the boards was an extension of the rider’s body.
All Inshore Freeride boards now include our in-house full-carbon foil box, lightweight and super stiff.
Materials: Carbon fiber, Entropy CLR© biosourced epoxy, Airex© PVC foam, Nomex© honeycomb, EPS core, Map Yachting© boat varnish.
Colors available: Fluorescent Orange / white, Custom Color.
Full customization available. Please allow 24h to get back to you with a design proposal.
Gore-Tex© venting valve
Footstrap inserts, custom configuration
FCS© leash plug
Carrying handle
Size variants:
4'10" x 24" x 90l
4'6 1/2" x 23 1/2" x 80l
4'6" x 23 1/2" x 70l
Custom Size
Lead time 8-12 weeks depending on production schedule.
Board sold alone, stainless screw set included.

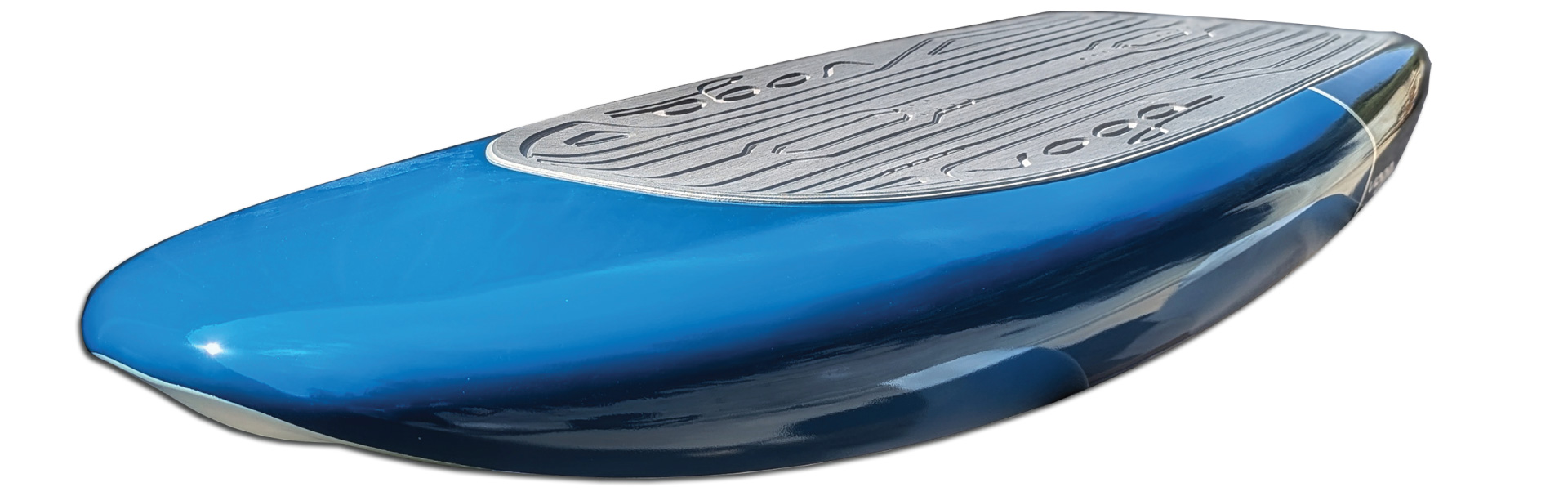

A Comfortable Freeride Board Shape
Our Inshore Freeride model is compact, relatively wider than the Freestyle line, with an outstretched rocker. The shape features a slight double concave on the front third and very marked rails with a kick lift on the rear to allow rocking rocking during the pumping phase.
Once in flight, the feeling of volume disappears. You’ll have the impression on flying on a board with 20 liters less which makes our freeride boards extremely manageable and versatile. They are a must have for intermediary to expert riders.
Full-Carbon Vacuum or Nomex© Honeycomb Pro Build
Internal Structure 1
Standard: Full Carbon Vacuum Build
| A | Low density EPS foam core 3D engineered in France |
| B | Airex© / carbon sandwich structural beam Deck / hull interface, IPN beam principle, extreme stiffness |
| C | Twill carbon fabric 2 sandwich layers with extra reinforcement strips on rails |
| D | Airex© PVC Sandwich Core Sandwich reinforcement under deck |
| E | In-house US-standard foil box plate Vacuum infused Carbon / Nomex© double sandwich plate, routed to USBox standards and secured with structural epoxy glue, then laminated under one layer of carbon |
| F | US-standard box rails Airex© / carbon sandwich bloc molded with US rails, laminated top and bottom and bound to the internal beam |
| G | Twill carbon fabric 2 sandwich layers with extra reinforcement strips on rails |
Internal Structure 2
Optional: Honeycomb Pro Build
| A | Hull-side carbon fabric 2 layers |
| B | Twill carbon fabric 2 sandwich layers with extra reinforcement strips on rails |
| C | Nomex© aramid honeycomb Full sandwich deck side from rail to rail |
| D | Airex© / carbon sandwich structural beam Deck / hull interface, IPN beam principle, extreme stiffness |
| E | In-house US-standard foil box plate Vacuum infused Carbon / Nomex© double sandwich plate, routed to USBox standards and secured with structural epoxy glue, then laminated under one layer of carbon |
| F | US-standard box rails Airex© / carbon sandwich bloc routed with US rails, laminated top and bottom and bound to the internal beam |
Wing Foil Freeride Images
